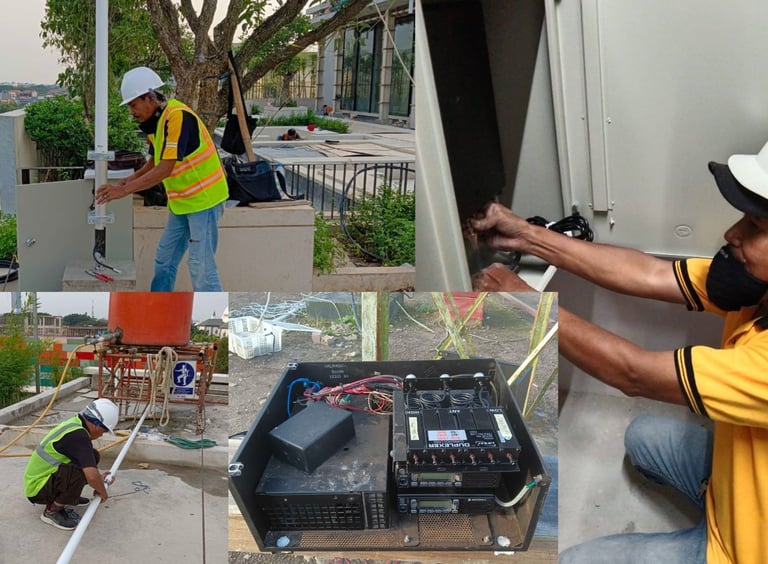

JASA INSTALASI

JASA INSTALASI

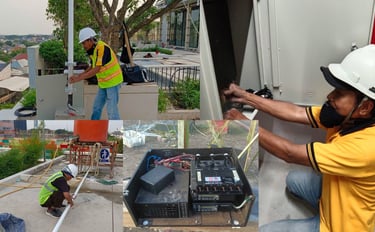

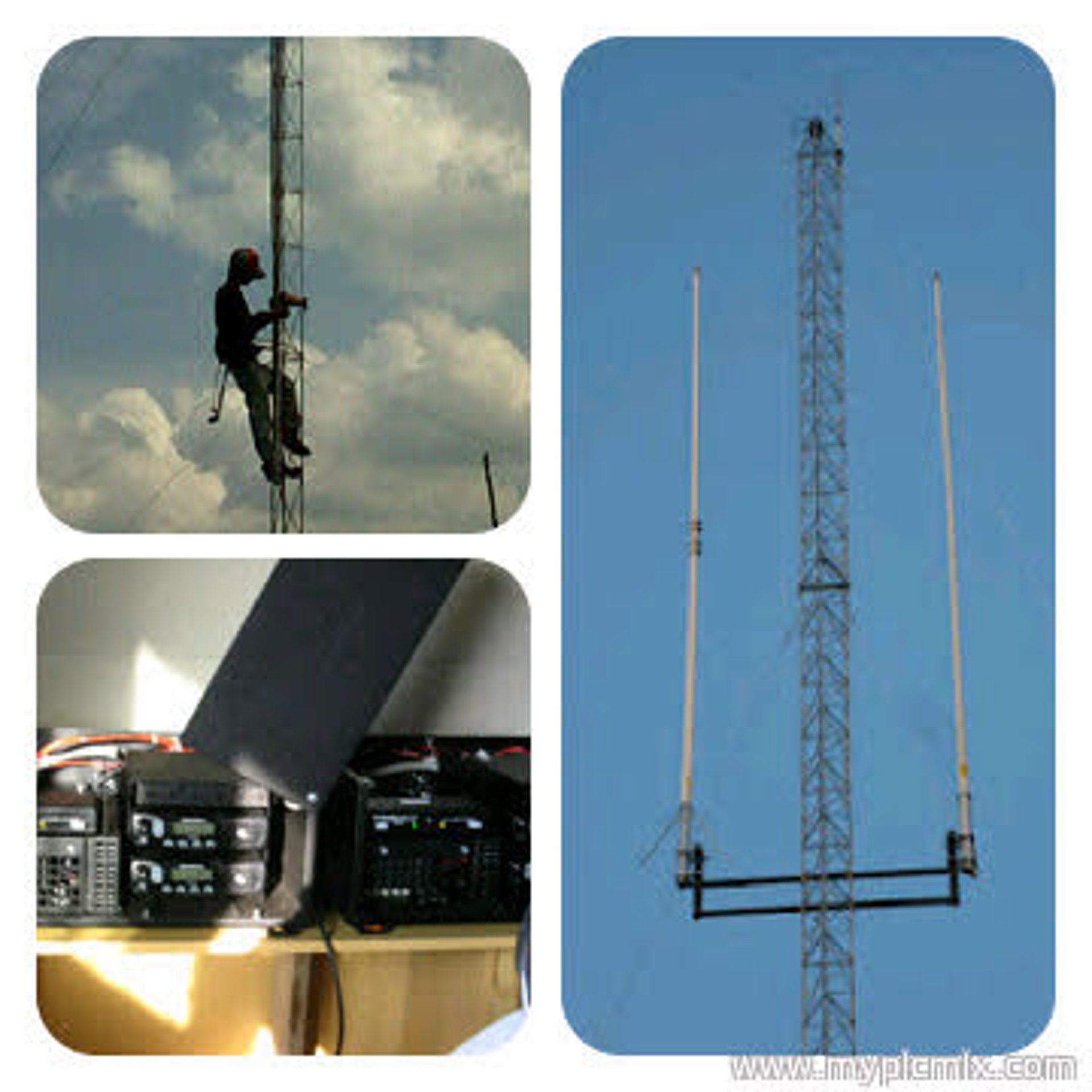

Pabrikasi Dan Pemasangan Tower, Pemasangan Repeater Radio Komunikasi, Base Station, Radio Mobil, Radio SSB , Radio Marine,dll.

KEPUASAN DIJAMIN

KEPUASAN DIJAMIN
Semua Produk Radio Komunikasi Bergaransi

PENGIRIMAN LUAR KOTA

PENGIRIMAN LUAR KOTA
UNTUK PEMBELIAN DI LUAR KOTA, BARANG DI KIRIM VIA EKSPEDISI

Popular Products

Total Tayangan Laman

LATEST PRODUCT

Selamat Datang Di Toko Radio Komunikasi Terlengkap Di Glodok

Selamat Datang Di Toko Radio Komunikasi Terlengkap Di Glodok
KHARISMA DUTA ANUGRAH Pusat Penjualan Radio Komunikasi, Handy Talky, Radio Rig, Radio SSB, REPEATER, Radio Marine, Radio VHF, Radio UHF, Radio HF, Service Radio Komunikasi, Motorola, Icom, Kenwood, Yaesu, Weierwei, Alinco, Firstcom, dll.. KHARISMA DUTA ANUGRAH Melayani Jasa Pengurusan Perizinan Frekuensi Radio Komunikasi. Mengerjakan Pemasangan Tower, Repeater Radio Komunikasi, SSB, Base Station, Pemasangan Radio Mobil, Radio Marine, dll.

Beli HT TENO Dapat Freepass Karaoke di INUL VIZTA SUNTER , Jakarta Utara

Beli HT TENO Dapat Freepass Karaoke di INUL VIZTA SUNTER , Jakarta Utara
untuk informasi lebih lanjut hubungi toko KHARISMA DUTA ANUGRAH. telfon : 02160310962 / 02160310963 / 081280323209 / 085710010252 / 02199740252

Radio HT TENO TN-322 VHF












MAIN FUNCTION


■  128 memory channels■  Channel name setting
■  CTCSS/DCS function■  Channel spacing
■  Wide/narrow band selective■  High/low power selective
■  Transmitter time-out timer■  Group calls / selective calls
■  ANI ID function■  LED display
■  Voice prompt■  Auto keypad lock
■  Tri-color backlight adjustable■  Low battery alarm
■  squelch level setting■  Backlight setting
■  Battery power display■  PC software programmable

SPECIFICATION


ItemsTN-322
General
Frequency Range136~174MHz
Channel Capacity128
Channel Spacing5 kHz/6.25kHz/10 kHz / 12.5kHz/25.0kHz
Frequency Stability±2.5ppm
Operating Temperature-25~+60℃
Antenna Impedance50Ω
Operating Voltage7.2V
Dimensions(W×H×D)115x 56x 30mm
Weight220g(Include battery & antenna)
Battery1100/1300mAh (Li-ion Battery)
Transmitter
RF output power4W/5W
Modulation Type16kΦF3E
Modulation Limiting≤5kHz
Modulation Character+3dB / -3dB
Spurious Radiation0.75μW
Adjacent Ch. power≥65dB
Max Fr. Deviation≤5kHz
Occupied Bandwidth≤16KHz
Receiver
Receiving Sensitivity0.25μV
Adjacent Ch. Selectivity60dB
Inter-modulation60dB
Co-channel suppression-8dB
Audio Response+2dB -10dB
Audio Output500mW
Audio Distortion≤3%

Radio HT TENO UV-E5 DUALBAND VHF & UHF



















MAIN FUNCTION

  • Dual Band (VHF/UHF)
  • Dual Display
  • Channel Name
  • CTCSS / DCS
  • Wide / Narrow Bandwith Selectable
  • 128 Channel
  • Scan
  • FM Radio

Technical SpecificationTENO
  ModelTN-UV_E5
  Frequency Range136-174 & 400-520 MHz (TX/RX)
  Channel Number128
  Channel Spacing2.5/5/6.25/10/12.5/20/25/50KHz
  Frequency Stability 2.5ppm
  Operating Voltage 7.4V
  Battery Type1800 mAh (Lithium Battery)
  Operating Temperature-30?C-+60?C
  Standby Current50mA
  Antenna Impedance50O
  Dimension(without antenna&battery58*110*32 mm
  Weight205 g (with antenna&battery)
Transmitter
  Power Output5 Watts/1 Watts
  Modulation16K?F3E /8K?F3E
  Spurious and Harmonious-36dBm<1GHz -30dBm>1GHz
  FM Noise45dB(N)/42dB(W)
  Adjacent Channel Power 60dB
  Audio Distortion 0,05
Receiver
  Sensitivity(12dB SINAD) 0.2uV
  Squelch Selectivity 0.15uV
  Adjacent Channel Selectivity =65dB
  Spurious Response Rejection-60dB
  Audio Power Output 500mW
  Audio Distortion=10%

Radio HT TENO TN-808 UHF 400-470MHz

MAIN FUNCTION

- 200 Memory channel
- CTCSS/DCS
- VOX
- FM RADIO
- SIMPLEX / DUPLEX


Radio HT TENO TN-733 (3band)


MAIN FUNCTION

■  Tri-band, dual display, dual standby■  FM radio and 25 stations storage
■  Channel name display and setting■  LED display mode
■  128*2 groups channels storage■  Dual watch/monitor
■  Wide/Narrow Band(25kHz/12.5kHz)■  Power-on message
■  CTCSS/DCS and scanning■  Transmitter time-out timer
■  1750Hz tone■  PTT & ANI ID
■  VFO step function■  Auto keypad lock
■  High/Low TX power selectable■  Tri-color background light selectable
■  Repeater offset function■  PC programmable


SPECIFICATION


ItemsTN-733
General
Frequency Range70-108MHz(FM Receive only)
 136-174MHz
350-390MHz
400-470MHz
Channel No.128*2
Frequency Stability±2.5ppm
AntennaHigh gain antenna
Antenna Impedance50Ω
Operating VoltageDC 7.2V
Mode of operationSimple or semi-duplex
Dimension(W x H x D)100 x 52 x 32 mm
Weight250g(including battery, antenna)
Transmitter
Output power≥4W(H)   ≥0.5W(L)
Modulation Mode16kΦF3E / 11kΦF3E
Maximum deviation<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation<7μW
Adjacent Ch. power≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics6dB
Current≤1.6A(5W)
CTCSS/DCS deviation0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity8-12mv
Intermediation distortion<10%
 Receiver
RF Sensitivity-122dbm(12db SINAD)
Audio power≥0.5W
Audio Distortion≤10%
Intermediation≤-65dB(Wide) / ≤-60dB(Narrow)
Selectivity≤-65dB(Wide) / ≤-60dB(Narrow)
Spurious Rejection≤-65dB
Blocking≥85dBuv/m






Radio HT TENO 727 DUALBAND VHF & UHF

MAIN FUNCTION


■  Dual band, dual display, dual standby■  A/B band independent operation
■  8 groups Scrambler■  VFO step function
■  Channel name display and setting■  Multi-display mode
■  128 groups channels storage■  FM radio and 25 stations storage
■  Wide/Narrow Band(25kHz/12.5kHz)■  0~9 grades VOX selectable
■  Repeater offset function■  CTCSS/DCS and scanning
■  Reapter shift direction■  PTT & ANI ID
■  Priority transmit selectable■  Voice companding
■  LED display mode■  Keypad beeper setting
■  1750Hz tone■  Dual watch/monitor
■  Receive saving function■  Auto keypad lock
■  Power-on display■  High/Low TX power selectable
■  Power-on message■  Transmitter time-out timer
■  PC programmable■  Tri-color background light selectable



SPECIFICATION


ItemsTN-727
General
Frequency Range70-108MHz(FM Receive only)
 136-174MHz
400-520MHz
Channel No.128
Frequency Stability±2.5ppm
AntennaHigh gain antenna
Antenna Impedance50Ω
Operating VoltageDC 7.2V
Mode of operationSimple or semi-duplex
Dimension(W x H x D)110 x 58 x 32 mm
Weight250g(including battery, antenna)
Transmitter
Output power≥4W(H)   ≥0.5W(L)
Modulation Mode16kΦF3E / 11kΦF3E
Maximum deviation<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation<7μW
Adjacent Ch. power≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics6dB
Current≤1.6A(5W)
CTCSS/DCS deviation0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity8-12mv
Intermediation distortion<10%
 Receiver
RF Sensitivity-122dbm(12db SINAD)
Audio power≥0.5W
Audio Distortion≤10%
Intermediation≤-65dB(Wide) / ≤-60dB(Narrow)
Selectivity≤-65dB(Wide) / ≤-60dB(Narrow)
Spurious Rejection≤-65dB
Blocking≥85dBuv/m

Radio HT TENO TN-211 VHF

MAIN FUNCTION


■  Compact and easy to operate■  Chinese and English voice prompt
■  Voice scrambler■  Emergency alert
■  COMP function■  Channel name editing
■  Dual watching function■  VOX function
■  CTCSS/DCS scanning■  Wide/Narrow Band(25kHz/12.5kHz)
■  Full frequency coverage■  1750Hz tone
■  Battery capacity management■  Power-on protection function
■  Progammable multifunction key■  FM  25 radio stations memory
■ PC programmable■  Transmitter time-out timer
■  Repeater offset■  Priority channel scan
■  USB charging■  Automatic power off(APO)
■  End of tone■  0-9 grades voice sensitivity



SPECIFICATION


ItemsTN-211
General
Frequency Range70-108MHz(FM Receive only)
                136-174MHz
Channel No.108
Frequency Stability±2.5ppm
AntennaHigh gain antenna
Antenna Impedance50Ω
Operating VoltageDC 3.6V
Mode of operation Simple or semi-duplex
Dimension(W x H x D)84 x 48 x 26 mm
Weight190g(including battery, antenna)
Transmitter
Output power≥3W(H)   ≥0.5W(L)
Modulation Mode16kΦF3E / 11kΦF3E
Maximum deviation<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation<7μW
Adjacent Ch. power≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics6dB
Current≤1.6A(5W)
CTCSS/DCS deviation0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity8-12mv
Intermediation distortion<10%
 Receiver
RF Sensitivity-122dbm(12db SINAD)
Audio power≥0.5W
Audio Distortion≤10%
Intermediation≤-65dB(Wide) / ≤-60dB(Narrow)
Selectivity≤-65dB(Wide) / ≤-60dB(Narrow)
Spurious Rejection≤-65dB
Blocking≥85dBuv/m

Radio HT TENO TN-350 UHF 350-390MHz

MAIN FUNCTION

■  128 memory channels■  Channel name setting
■  CTCSS/DCS function■  Channel spacing
■  Wide/narrow band selective■  High/low power selective
■  Transmitter time-out timer■  Group calls / selective calls
■  ANI ID function■  LED display
■  Voice prompt■  Auto keypad lock
■  Tri-color backlight adjustable■  Low battery alarm
■  squelch level setting■  Backlight setting
■  Battery power display■  PC software programmable

specification

ItemsTN-350
General
Frequency Range350~390MHz
Channel Capacity128
Channel Spacing5 kHz/6.25kHz/10 kHz / 12.5kHz/25.0kHz
Frequency Stability±2.5ppm
Operating Temperature-25~+60℃
Antenna Impedance50Ω
Operating Voltage7.2V
Dimensions(W×H×D)115x 56x 30mm
Weight220g(Include battery & antenna)
Battery1100/1300mAh (Li-ion Battery)
Transmitter
RF output power5W
Modulation Type16kΦF3E
Modulation Limiting≤5kHz
Modulation Character+3dB / -3dB
Spurious Radiation0.75μW
Adjacent Ch. power≥65dB
Max Fr. Deviation≤5kHz
Occupied Bandwidth≤16KHz
Receiver
Receiving Sensitivity0.25μV
Adjacent Ch. Selectivity60dB
Inter-modulation60dB
Co-channel suppression-8dB
Audio Response+2dB -10dB
Audio Output500mW
Audio Distortion≤3%

Radio HT TENO TN-322 AERO VHF



















MAIN FUNCTION

■  128 memory channels■  Channel name setting
■  CTCSS/DCS function■  Channel spacing
■  Wide/narrow band selective■  High/low power selective
■  Transmitter time-out timer■  Group calls / selective calls
■  ANI ID function■  LED display
■  Voice prompt■  Auto keypad lock
■  Tri-color backlight adjustable■  Low battery alarm
■  squelch level setting■  Backlight setting
■  Battery power display■  PC software programmable

SPECIFICATION

ItemsTN-322AERO
General
Frequency Range136~174MHz
Channel Capacity128
Channel Spacing5 kHz/6.25kHz/10 kHz / 12.5kHz/25.0kHz
Frequency Stability±2.5ppm
Operating Temperature-25~+60℃
Antenna Impedance50Ω
Operating Voltage7.2V
Dimensions(W×H×D)115x 56x 30mm
Weight220g(Include battery & antenna)
Battery1100/1300mAh (Li-ion Battery)
Transmitter
RF output power4W/5W
Modulation Type16kΦF3E
Modulation Limiting≤5kHz
Modulation Character+3dB / -3dB
Spurious Radiation0.75μW
Adjacent Ch. power≥65dB
Max Fr. Deviation≤5kHz
Occupied Bandwidth≤16KHz
Receiver
Receiving Sensitivity0.25μV
Adjacent Ch. Selectivity60dB
Inter-modulation60dB
Co-channel suppression-8dB
Audio Response+2dB -10dB
Audio Output500mW
Audio Distortion≤3%

RADIO RIG ICOM IC-M304 Series VHF Marine Transceiver















Specifications

General
Frequency Range
  Tx
  Rx
  Ch. 70

156.025–157.425MHz
156.050–163.275MHz
156.525MHz
Usable channelsINT, USA, CAN, WX channels
Type of emission16K0G3E (FM)
16KOG2B (DSC)
Power supply requirement13.8V DC nominal (11.7–15.9V DC)
Current drain (at 13.8V DC)
  Tx 25W output
  Rx AF max.

5.5A
1.5A
Operating temperature range-20°C to +60°C; -4°F to +140°F
Antenna Impedance50Ω (SO-239)
Dimensions (W×H×D)
(Projections not included)
180 × 82 × 119.9 mm;
7.09 × 3.23 × 4.72 in
Weight (approx.)12kg; 2.65lb
NMEA in/out formatsRMC, GGA, GNS, GLL, DSC, DSE
Transmitter
Output power (at 13.8V DC)25W, 1W
Max. frequency deviation± 5 KHz
Frequency tolerance±10ppm (-20°C to +60°C)
Spurious emissionsLess than –70dBc (High)
Less than –56dBc (Low)
Receiver
Sensitivity
  Main
  Ch. 70

–13dBμ typ. (12dB SINAD)
–5dBμ emf typ. (1% BER)
Squelch sensitivityLess than –10dBμ
Adjacent channel selectivity
  Main
  Ch. 70

More than 70dB
More than 73dBμ emf (1% BER)
Spurious response
  Main
  Ch. 70

More than 70dB
More than 73dBμ emf (1% BER)
Intermodulation
  Main
  Ch. 70

More than 70dB
More than 68dBμ emf (1% BER)
Hum and noiseMore than 40dB
Audio output power
(at 10% distortion, 4Ω load)
4.5W typical
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable IP Rating
Ingress Protection Standard
WaterIPX7 (Waterproof protection)
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.

Supplied Accessories

  • Hand microphone, HM-200B/SW
  • DC power cable
  • Mounting bracket kit

Diagrams












Options

  • MA-500TR CLASS B AIS TRANSPONDER

  • MB-132 FLUSH MOUNT KIT
    For flush-mounting the IC-M324 / M324G to a flat surface.

ATUHORIZED DEALER RADIO HT TENO

ATUHORIZED DEALER RADIO HT TENO

ALAMAT TOKO

KHARISMA DUTA ANUGRAH
Radio Communication & Accesories Supply.
DISTRIBUTOR RADIO HT TENO Gedung Plaza Pinangsia. Lantai 2 No.17. Jl. Pinangsia Raya No.1 Jakarta Barat 11180 Phone : 021-60310962, 021-60310963, Fax : 021-62303521.
HP : 081280323209, 085710010252, 02199740252
e-mail :kharisma_ comm@ yahoo.co.id
YM : kharisma_ comm

CHAT WITH US

BBM

BBM
Comment Box is loading comments...
Facebook  Twitter
